Digitalize Ration: Edge-Biometric IoT Dispenser & PDS Anti-Fraud Platform
Automated grain dispensing kiosk with Aadhaar RFID, edge neural face recognition, closed-loop strain gauge weight cutoff, and Supabase cloud ledger.
System Overview & Abstract
An autonomous, anti-theft grain dispensing kiosk engineered to eradicate black marketing, duplicate ration cards, and inaccurate manual weighing in the Public Distribution System (PDS). Deployed with an ESP32 dual-core gateway, the station verifies beneficiaries through Aadhaar-linked RFID cards or client-side neural face landmark matching. Upon authentication, a high-torque PWM servo valve actuates a gravity-feed hopper while an HX711 24-bit ADC continuously monitors a strain gauge load cell to enforce sub-gram precision cutoff at the exact monthly entitlement, instantly synchronizing tamper-proof deduction logs to a cloud PostgreSQL ledger.
Live System Telemetry & Screenshots
Actual screens from the bench-tested hardware unit, biometric kiosk portal, and cloud inventory dashboard.

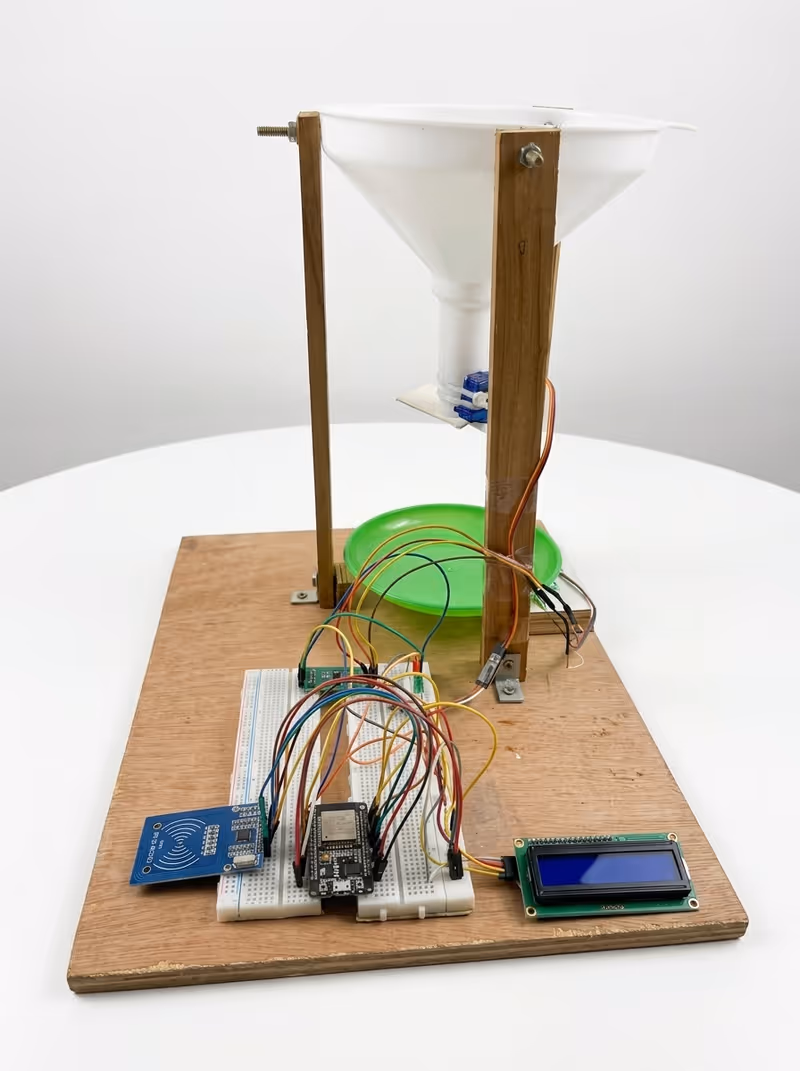

Hardware Dispensing Unit — Bench-Tested Prototype
Physical dispensing unit with gravity hopper, servo valve, strain gauge load cell tray, ESP32, 16×2 LCD, and RC522 RFID reader.

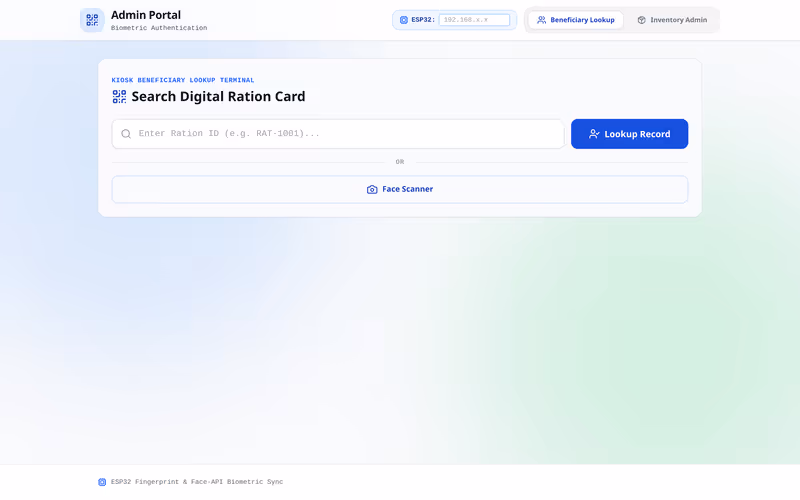

Kiosk Portal — Biometric Verification & Quota Lookup
React 19 kiosk console with client-side neural face recognition, cardholder entitlement lookup, and dispense triggers.

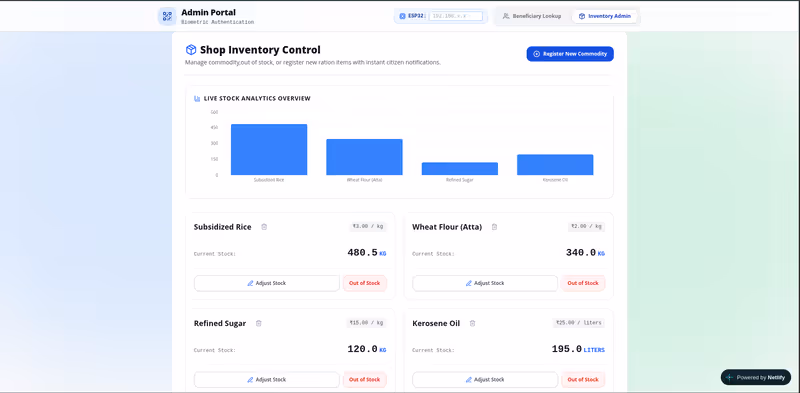

Inventory & Distribution Telemetry — Cloud Stock Ledger
Real-time inventory dashboard monitoring commodity levels (Rice, Wheat, Sugar, Kerosene), pricing, and audit logs.
PDS Fraud Vectors & Autonomous Mitigation
How the ESP32 closed-loop strain gauge and biometric verification eliminate distribution leakage.
Ghost Beneficiary & Duplicate Cards
Unauthorized individual attempts to claim subsidized grain using invalid or counterfeit RFID token.
Manual Scale Under-Weighing & Dealer Skimming
Shopkeeper manually manipulates mechanical balance or dispenses partial allocation to pocket surplus stock.
Black Market Stock Diversion
Shop owner claims absent beneficiaries collected grain and diverts unclaimed stock into private market.
Itemized Hardware Bill of Materials (BOM)
Components bench-tested by our engineering team with direct Indian electronic distributor sources.
| Component Description | Qty | Unit Rate | Subtotal | Distributor |
|---|---|---|---|---|
| ESP32-WROOM-32D Development Board (Dual-Core Wi-Fi/BLE) | 1 | ₹420 | ₹420 | Robu |
| RC522 13.56MHz RFID Reader Module + S50 Smart Cards | 1 | ₹140 | ₹140 | Robu |
| 5kg Micro Strain Gauge Load Cell Sensor Bar | 1 | ₹180 | ₹180 | Robu |
| HX711 24-Bit Dual-Channel Weighing ADC Amplifier Module | 1 | ₹85 | ₹85 | Robu |
| TowerPro SG90 / MG90S Micro Servo Motor (Grain Gate) | 1 | ₹120 | ₹120 | Robu |
| 16×2 Character LCD Display with PCF8574 I2C Backpack | 1 | ₹210 | ₹210 | Robu |
| Dual Status LEDs (Green/Red) & 220Ω Current Limiting Resistors | 2 | ₹25 | ₹50 | Retail |
| 830-Point Solderless Breadboard & 40-Pin Jumper Wires | 1 | ₹160 | ₹160 | Robu |
| Gravity Grain Hopper, Dispenser Valve Bracket & Test Rig | 1 | ₹360 | ₹360 | Fabrication |
| 5V 2A Regulated Power Supply / USB Power Bank with Trickle Mode | 1 | ₹480 | ₹480 | Retail |
| Total Hardware Cost: | ₹2,205 | |||
